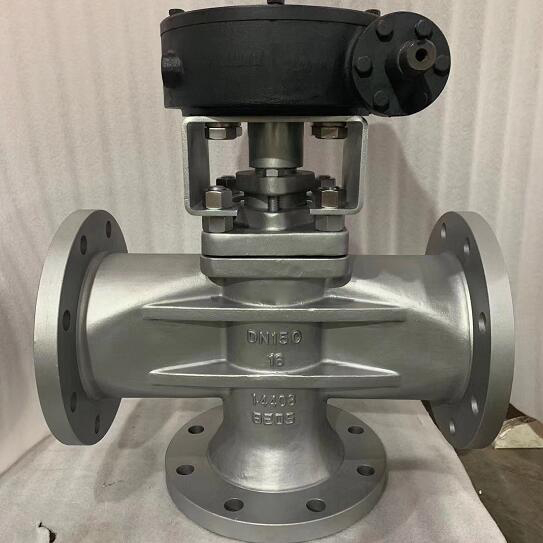

China three way plug valve factory and supplier

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China three way plug valve factory and supplier,3 way plug valve manufacturer
China three way plug valve factory and supplier,3 way plug valve manufacturer,China three way plug valve is applicable in petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas, hvAC industry and general industry.China three way plug valve is with Nominal pressure range: 150Lb-600Lb,Nominal size: 1/2"--24" (DN15--DN600),Applicable temperature: -40~+450℃,Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional).

China three way plug valve feature
1. Three way plug valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions,Three way plug valve can be designed into various medium flowing forms (e.g." type or "T" type)or all kinds of materials(Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.
4.Three way plug valve is applicable to change the medium flowing direction to distribute the mediums,Three way plug valve are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 150-900LBS, PN 1.0-16.0, working temperature of -40~450℃

China three way plug valve technical requirement
Diving manner Hand wheel, worm, worm gear, pneumatic, electric-actuated
Design standard AP1599, AP16D, GB12240
Face to face ASME B16.10, GB12221,DIN3202
Flange end ASME B 16.5,JB79,GB9113,DIN2543-2545
Test &inspection AP1598.AP16D,GB13927,DIN3230
