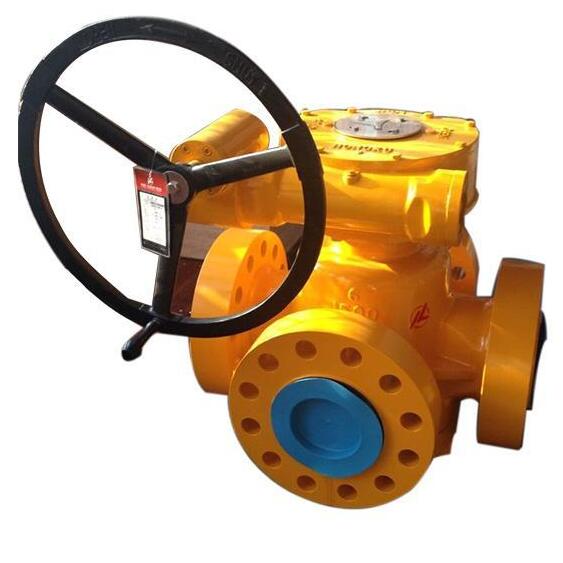

High pressure 4 way plug valve CL600 CL900 CL1500

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:Class 600 ~ Class 1500
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB WCC LCB CF8 CF3 CF8M CF3M
  • Description:
High pressure 4 way plug valve CL600 CL900 CL1500 introduction
High pressure 4 way plug valve CL600 CL900 CL1500 is applicable to change the medium flowing direction to distribute the mediums,High pressure 4 way plug valve CL600 CL900 CL1500 is used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 600-1500LBS, PN 1.0-16.0, working temperature of -40~450℃

High pressure 4 way plug valve CL600 CL900 CL1500 feature
1. High pressure 4 way plug valve CL600 CL900 CL1500 has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions, High pressure 4 way plug valve CL600 CL900 CL1500 can be designed into various medium flowing forms or all kinds of materials(Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.

High pressure 4 way plug valve CL600 CL900 CL1500  technical requirement
Structural formation BB-BG
Diving manner Hand wheel, worm, worm gear, pneumatic, electric-actuated
Design standard AP1599, AP16D, GB12240
Face to face ASME B16.10, GB12221,DIN3202
Flange end ASME B 16.5,JB79,GB9113,DIN2543-2545
Test &inspection AP1598.AP16D,GB13927,DIN3230
