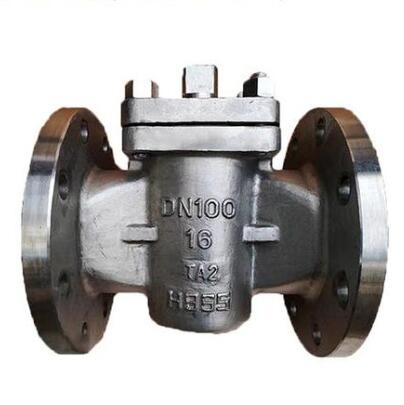

China Titanium Plug Valve TA2

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:Titanium Alloy TA2 or other grade
  • Description:China titanium plug valve manufacturer, factory and supplier.
China titanium plug valve manufacturer, factory and supplier. China Titanium plug valve TA2 can be lubricated or non-lubricated design for the process industries to handle liquids that contains slurry and sludge or liquids which are hazardous, corrosive ect. harsh working conditions with the advantage of deposit-free, anti-crystallization, anti-corrosion, and anti-high temperature and pressure.The most distinct property of Titanium plug valve TA2 is its outstanding resistance to corrosion, especially highly resistant to acids, aqua regia and moist chlorine in water.


Titanium Plug Valve TA2 Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Titanium Plug Valve Main Material:

ZTA1、ZTA2、ZTA3、ZTA9、ZTA10、ZTC4

TA1、TA2、TA3、TA9、TA10、TC4

Titanium Gr2、Gr3、Gr5、Gr6、Gr7、Gr12

Titanium GrC2、GrC3、GrC5、GrC6、Ti-Pd7B、GrC12

Titanium GrF2、GrF3、GrF5、GrF6、GrF7、GrF12

Titanium Plug Valve Application:
Seawater Desalination: Titanium valves are almost non-corrosive in seawater, making long-term immersion possible.

Pulp and Paper: The pulp in the bleaching section contains a small amount of chloride ion, and the titanium valve bears excellent resistance to chloride-ion corrosion.

Smelting: Titanium valves boast the advantages of safety, reliability and long service life.

Aviation and Military: Titanium valves are of lightweight, high mechanical strength and virtually non-magnetic.

Packaging- Titanium valves are packed in superior plywood boxes. Every valve is secured by a plastic cap to avoid any damage in transportation. This accumulated product is also packed in polythene lock bags to avoid any pollution.
