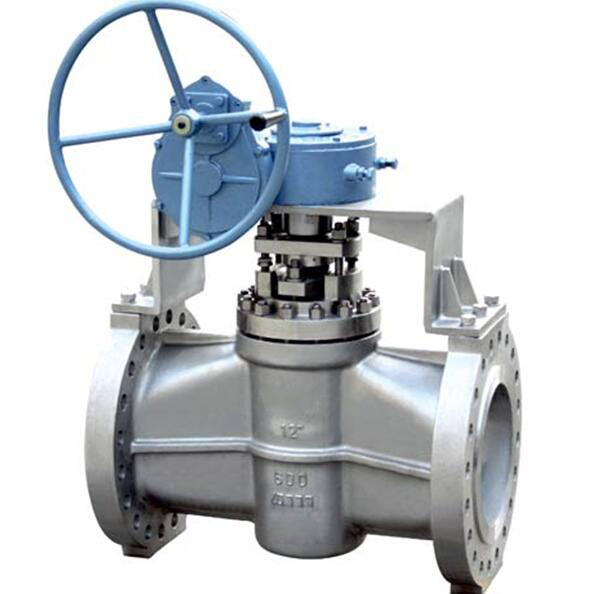

Monel 400 K500 Plug Valve


  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:Monel 400 K500 or others
  • Description:Monel 400 K500 Plug Valve manufacturer, factory and supplier.
Monel 400 K500 Plug Valve manufacturer, factory and supplier. Monel 400 K500 Plug Valve is a nickel-based alloy material with good corrosion resistance in seawater, chemical solvents, ammonia sulfur chloride, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acid, alkaline media, salt and molten salt.

Monel 400 plug valve is widely used in marine applications. While Monel 400 plug valve exhibit very low corrosion rates in flowing seawater, stagnant conditions have been shown to induce crevice and pitting corrosion. Alloy 400 is also resistant to stress corrosion cracking and pitting in most fresh and industrial waters.

Monel K500 plug valve retains the excellent corrosion resistance characteristic of 400 and with mechanical strength enhanced and hardness hardening, approximately 3 times on yield strength and 2 times on tensile strength

Monel 400 K500 Plug Valve Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600
Structure:Lubricated or Non-lubricated

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA


Monel 400 K500 Plug Valve Application:

Monel 400 K500 Plug Valve can be used in the most demanding alkylation applications such as HF service. Monel valves are often used as chemical valves, petrochemical valves, desalination valves, shipbuilding valves, oil and gas valves, medical valves, and oxygen valves.

When Monel 400 K500 Plug Valve is applied in HF service, low emission, and double gland seal design is preferable and after installation, valves must be painted with caution paint, which is acid-base indicator (also known as pH indicators) are substances that change color with pH.
