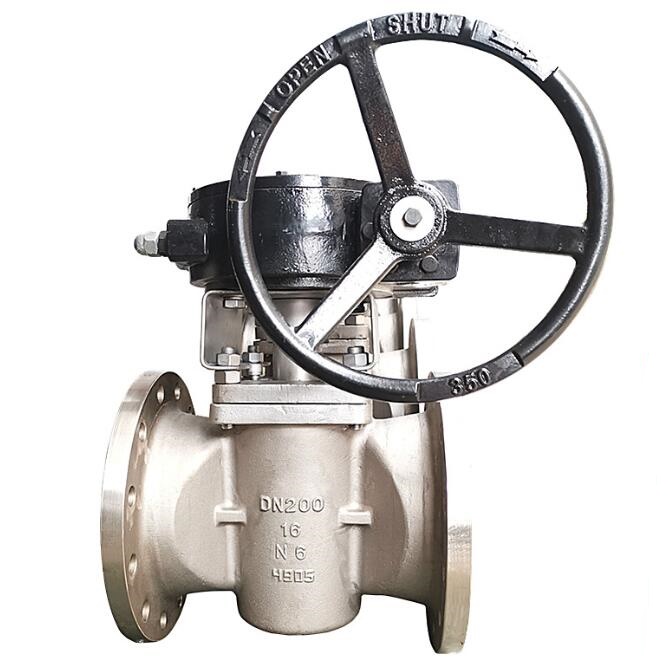

Pure Nickel Alloy Plug Valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:Pure Nickel Alloy N6 or others
  • Description:Pure Nickel Alloy Plug Valve manufacturer, factory and supplier in China.
Pure Nickel Alloy Plug Valve manufacturer, factory and supplier in China. Pure Nickel Alloy Plug Valve material can be N6 N200 N201 CZ-100, which shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids.

Pure Nickel Alloy Plug Valve Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600
Structure:Lubricated or Non-lubricated

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Pure Nickel
Alloy Plug Valve Feature:

1. Bi-directional flow, simple actuation, lightweight compact design, and multiport configurations all facilitate improved system design
2.
The inert PTFE sleeve completely surrounds the plug providing a large, circumferential sealing surface from port to port
3.
Secure sealing with no cold-flow, deformation, or sleeve rotation and greatly minimized potential for the blow out
4.
No seizing or sticking
5.
There are no body cavities where flow media can accumulate and contaminate future processing
