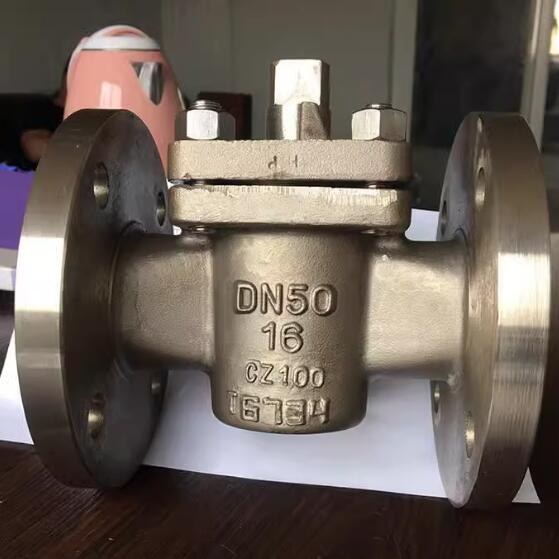

Nickel Alloy A494 CZ100 Plug Valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~180℃
  • Body material:Nickel Alloy A494 CZ100
  • Description:Nickel Alloy A494 CZ100 Plug Valve manufacturer, factory and supplier.
Nickel Alloy A494 CZ100 Plug Valve manufacturer, factory and supplier. Nickel Alloy A494 CZ100 Plug Valve chemical composition is 95% Ni and 1% C, and there is no corresponding rolled material. When Nickel Alloy A494 CZ100 Plug Valve is used in high temperature high concentration or anhydrous alkali solution, it has excellent corrosion resistance. Nickel Alloy A494 CZ100 Plug Valve is commonly used in chlor-alkali production with high corrosive concentrations (including molten anhydrous caustic soda) and in applications where metal contamination products such as copper and iron cannot be present. The material code of cast nickel alloy A494 CZ-100 plug valve is Ni. The suitable working temperature of CZ-100 alloy is -29 ~ 316℃.

Nickel Alloy A494 CZ100 Plug Valve Specification
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K
Size range: NPS1/2” ~24”, DN15~DN600
Bore: Full bore, Reduced bore
Standard connections: flange, threaded, butt weld, socket weld
Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Nickel Alloy A494 CZ100 Plug Valve Feature

1. Bi-directional flow, simple actuation, lightweight compact design, and multiport configurations all facilitate improved system design

2. The inert PTFE sleeve completely surrounds the plug providing a large, circumferential sealing surface from port to port

3. Secure sealing with no cold-flow, deformation, or sleeve rotation and greatly minimized potential for the blow out

4. No seizing or sticking

5. There are no body cavities where flow media can accumulate and contaminate future processing
