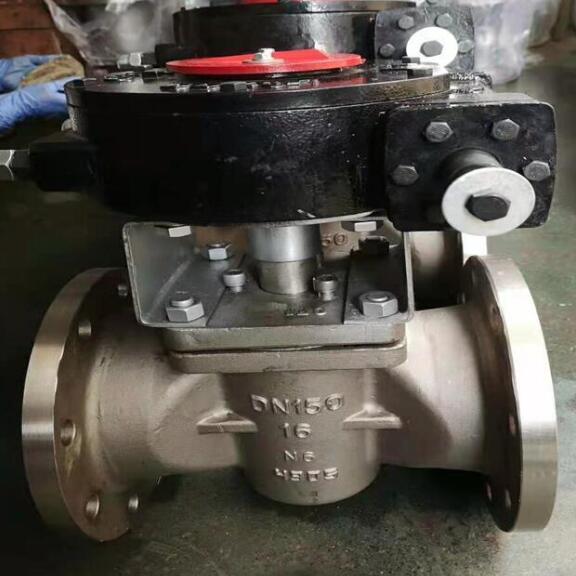

Pure Nickel N6 Plug Valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~180℃
  • Body material:Pure nickle N6 N200 N201 CZ-100
  • Description:Pure Nickel Plug Valve manufacturer, factory and supplier in China.
Pure Nickel Plug Valve manufacturer, factory and supplier in China supply pure nickel N6 N200 N201 CZ-100 plug valve factory price for sale. Pure Nickel N6 Plug Valve shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids.

Pure Nickel N6 Plug Valve Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600
Structure:Lubricated or Non-lubricated

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Pure Nickel N6 Plug Valve Feature:

1. Bi-directional flow, simple actuation, lightweight compact design, and multiport configurations all facilitate improved system design
2.
The inert PTFE sleeve completely surrounds the plug providing a large, circumferential sealing surface from port to port
3.
Secure sealing with no cold-flow, deformation, or sleeve rotation and greatly minimized potential for the blow out
4.
No seizing or sticking
5.
There are no body cavities where flow media can accumulate and contaminate future processing
