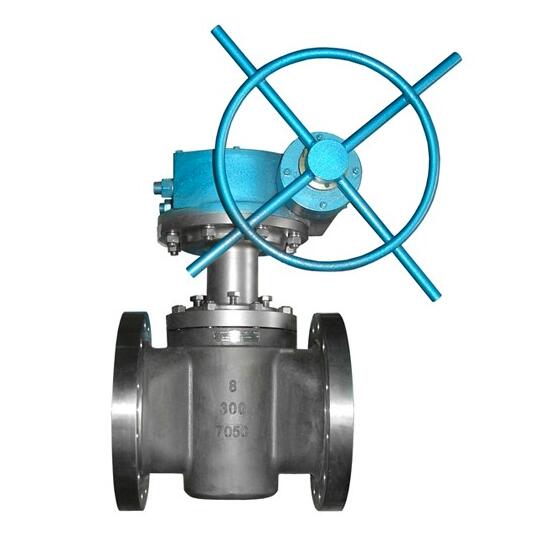

Titanium Plug Valve Specification:

Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

Titanium Plug Valve Main Material:

ZTA1、ZTA2、ZTA3、ZTA9、ZTA10、ZTC4

TA1、TA2、TA3、TA9、TA10、TC4

Titanium Gr2、Gr3、Gr5、Gr6、Gr7、Gr12

Titanium GrC2、GrC3、GrC5、GrC6、Ti-Pd7B、GrC12

Titanium GrF2、GrF3、GrF5、GrF6、GrF7、GrF12

Titanium Plug Valve Application:
Seawater Desalination: Titanium plug valve is almost non-corrosive in seawater, making long-term immersion possible.

Pulp and Paper: The pulp in the bleaching section contains a small amount of chloride ion, and the titanium plug valve bears excellent resistance to chloride-ion corrosion.

Smelting: Titanium plug valve boast the advantages of safety, reliability and long service life.

Aviation and Military: Titanium plug valve is of lightweight, high mechanical strength and virtually non-magnetic.

Packaging- Titanium plug valve packed in superior plywood boxes. Every valve is secured by a plastic cap to avoid any damage in transportation. This accumulated product is also packed in polythene lock bags to avoid any pollution.
