UB6 Plug Valve Manufacturer and Supplier


  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:UB6 Super Austenitic Stainless Steel
  • Description:UB6 Plug Valve Manufacturer and Supplier, Factory price for sale in China
UB6 Plug Valve Manufacturer and Supplier, Factory price for sale in China. UB6 Plug Valve is a very low carbon, high alloying austenitic stainless steel designed for harsh corrosion conditions. UB6 Plug Valve has better corrosion resistance than 316L and 317L Plug valve. At the same time, both price and performance are considered to be cost-effective. Due to the addition of 1.5% copper, excellent corrosion resistance to reducing acids such as sulfuric acid and phosphoric acid. UB6 Plug Valve also has excellent corrosion resistance to stress corrosion, pitting corrosion and crevice corrosion caused by chloride ions, and has good intergranular corrosion resistance.

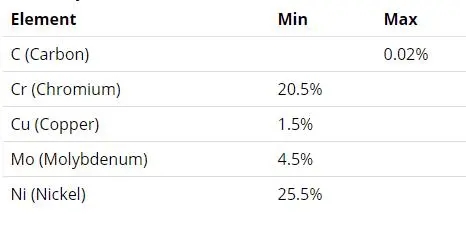

The chemical composition of UB6 Plug Valve is shown below:

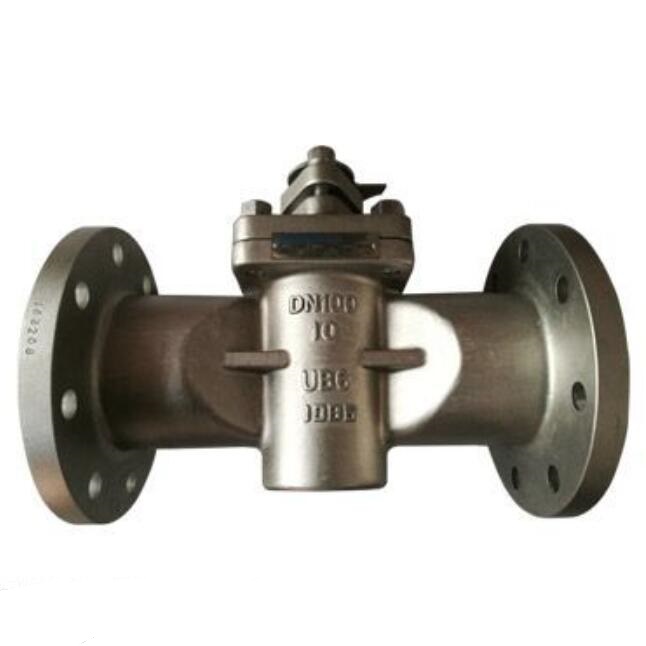

UB6 Super Austenitic Stainless Steel Plug Valve

UB6 Plug Valve Specification:
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA

UB6 Plug Valve Application:

1. Oil, petrochemical equipment, such as reactors in petrochemical equipment, etc.

2. Sulfuric acid storage and transportation equipment, such as heat exchangers.

3. Power plant flue gas desulfurization device, the main use parts are: absorption tower body, flue, door plate, internal parts, spray system, etc.

4. Scrubbers and fans in organic acid treatment systems.

5. Seawater treatment equipment, seawater heat exchanger, paper industry equipment, sulfuric acid, nitric acid equipment, acid making, pharmaceutical industry and other chemical equipment, pressure vessels, food equipment.

6. Pharmaceutical factory: centrifuge, reactor, etc.

7. Plant foods: soy sauce jars, cooking wine, salt jars, equipment and dressings.
