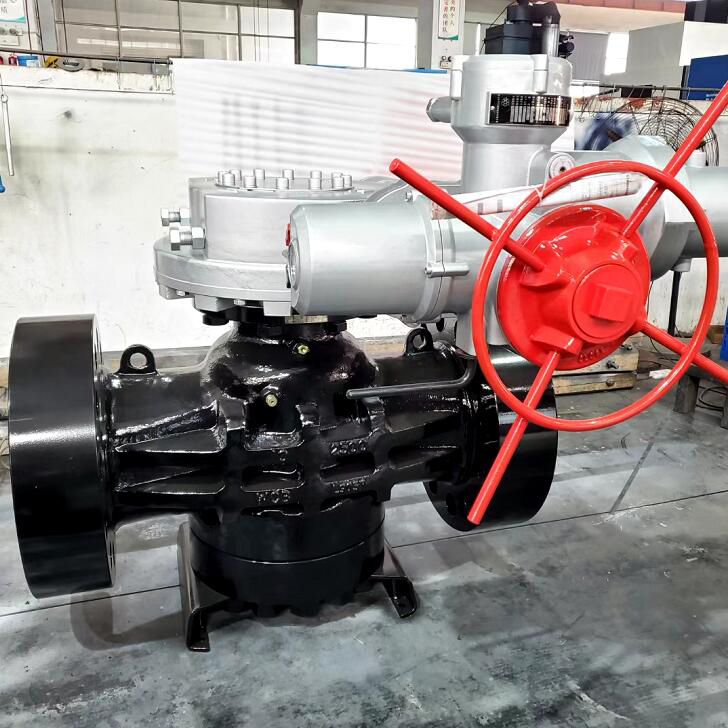

Motorized plug valve with electric actuator

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:CL150-CL2500
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB A105 CF8 CF8M F304 F316 F316L or others
  • Description:China electric plug valve,electrically actuated plug valve,motorized plug valve manufacturer,factory and supplier.
Motorized plug valve with electric actuator introduction
Motorized plug valve with electric actuator is componsed of lubricated or non-lubricated plug valve and electric actuator for on off or regulating control,Motorized plug valve with electric actuator is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media,Motorized plug valve with electric actuator can usually also be used for petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Motorized plug valve with electric actuator specification
Nominal pressure range: 150Lb-2500lb
Nominal size: 1"--48" (DN25--DN1200)
Applicable temperature: -40~ 450℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Seal structure: metal seated
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Motorized plug valve with electric actuator parameter
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
