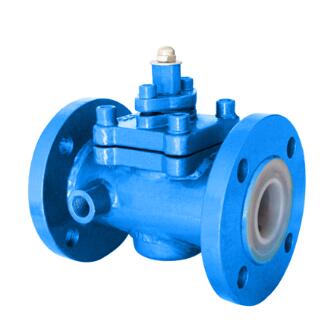

FEP PTFE PFA Lined jacketed plug valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF8M+FEP/PTFE/PFA
  • Description:
FEP PTFE PFA Lined jacketed plug valve is full FEP PTFE or PFA lined structure with jacket cover for corrosive and easy crystallized medium. PTFE PFA Lined jacketed plug valve is largely used to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. PTFE PFA Lined jacketed plug valve is widely used in Food Process,fertilizer Industries application and other anti-crystallization and heating insulation industry system

The Jackets of  PTFE PFA Lined jacketed plug valve assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media.  PTFE PFA Lined jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

FEP PTFE PFA Lined jacketed plug valve operation: Jackted plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation.

FEP PTFE PFA Lined jacketed plug valve Technical Performance:
Design Standard BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance As Per ANSI B 16.10
End Connection Flanged End to ANSI B 16.5, Class 150 / 300
  PN 10 / PN 16 / PN 25 / PN 40
  DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve 150# / 300#
  PN 10 / PN 16 / PN 25 / PN 40
Valve Operation Manual Hand Lever / Worm-Gear Operated
  Pneumatic Actuator / Electrical Actuator
Jacket Connection Type Flanged End / Threaded End (BSP/NPT - Female)

FEP PTFE PFA Lined jacketed plug valve Structure
FEP PTFE PFA Lined jacketed plug valve structure
