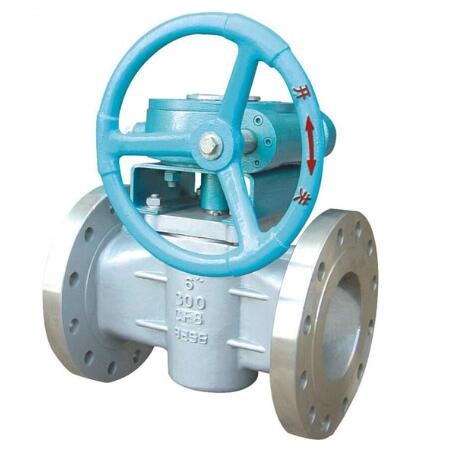

Stainless steel Non lubricated plug valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN100 CL150-CL900
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~180℃
  • Body material:CF8 CF8M CF3 CF3M or other stainless steel
  • Description:China Non lubricated plug valve manufcturer,factory and supplier
Stainless steel Non lubricated plug valve introduction:
Stainless steel Non lubricated plug valve is simple structure, quick opening and closing, small flow resistance, convenient maintenance, good sealing performance, etc.Stainless steel Non lubricated plug valve is sealed through the sealing surface around the sleeve.Unique 360° metal lip protection fixed sleeve, Non-lubricated taper plug valve has no cavity for medium accumulation, metal lip provides self-cleaning function when the sleeve plug valve turns,Stainless steel Non lubricated plug valve is suitable for cutting off or connecting pipeline medium under nominal pressure CLASS150~CLASS900 and working temperature -29℃ ~ 180℃ in petroleum, chemical industry, pharmaceutical industry, chemical fertilizer industry, electric power industry and other working conditions.

Stainless steel Non lubricated plug valve specification
Nominal pressure range: 150Lb-900lb or 1.00-10.00Mpa
Nominal size: 1/2"--16" (DN15--DN400)
Applicable temperature: -29~ 180℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Form: two or three way
Seal structure: soft seal
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Stainless steel Non lubricated plug valve feature:
1. Soft seal of clamp sleeve has reasonable structure, reliable seal, excellent performance and beautiful appearance.
2. Sealing is through the cover around the card to achieve.Unique 360° metal lip protection fixed clamp sleeve.
3. No cavity to the media accumulation.
4. The metal lip provides self-cleaning function when the plug is rotating, suitable for sticky and easy scaling working conditions.
5. Two-way flow, more convenient to use and install.
6. The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

Stainless steel Non lubricated plug valve standard
Design and Manufacturing standards: API599, API6D
Structural length standard: ASMEB16.10
Connection flange standard: ASMEB16.5
Pressure and temperature class: ASMEB16.34
Test standard: API598.API6D

Stainless steel Non lubricated plug valve Material specifications
NO. Part name Material
A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
1 Body A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
2 sleevd PTFE/RPTFE
3 Plug A182 F6a A351 CF8 A351 CF8M A351 CF3 A351 CF3M
4 Gasket Flexible graphite+stainless steel PTFE
5 Adjusting gasket A182 F6a A182 F304 A182 F316 A182 F304L A182 F316L
6 Cover A216 WCB A351 CF8 A351 CF8 A351 CF3 A351 CF3M
7 Adjusting bolt A193 B7 A193 B8 A193 B8M A193 B8M A193 B8M
8~9 Bolt/nut B7/2H B8/8 B8M/8M B8M/8M B8M/8M
10 Wrench AsTM A105/A216 WCB


Stainless steel Non lubricated plug valve Dimensions(mm)

Class 150Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF mm 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 8.5 9.5 10.5 12 14 18 22 26 40 60 70 130 219 381 570
Class 300Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF,BW mm 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 9.5 10.5 12 14 16 20 24 29 53 75 85 185 230 390 550
Class 600Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF,BW mm 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710
Class 900Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF mm 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860
