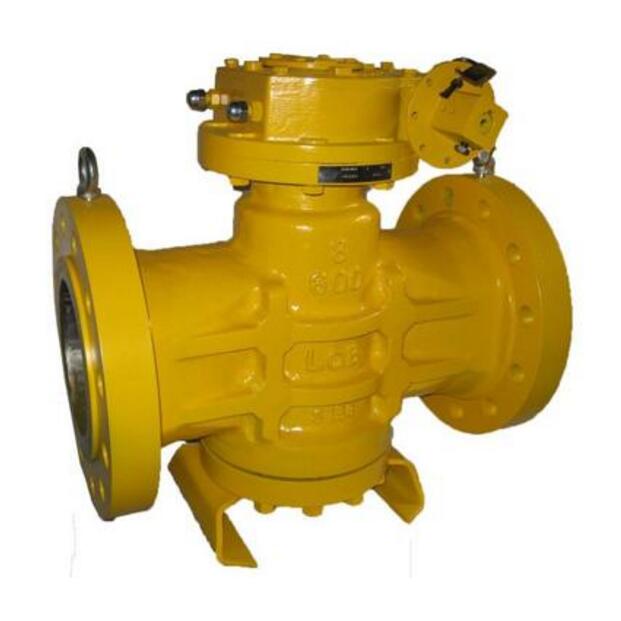

8 10 12 14 16 inch eccentric type plug valve Description
8 10 12 14 16 inch eccentric type plug valve can be designed according to ANSI standard, 8 10 12 14 16 inch eccentric type plug valve was widely applied for petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc,the main application of eccentric type plug valve is cutting and connectting the pipeline medium with pressure class 150 to class 900 under the temperature -29℃ to +180℃(soft seat design);-29℃ to +450(metal seat design).

8 10 12 14 16 inch eccentric type plug valve  Main Characteristics
1. Compact structure, reliable sealing, perfect function and attractive shape .
2. Easy to be opened or closed.
3.For the spare parts material and flange size,8 10 12 14 16 inch eccentric type plug valve can be customized according to different actual working condition to meet project requirements.

8 10 12 14 16 inch eccentric type plug valve Technical Specification

Design & manufacturer	API599, API6D
Nominal diameter	1/2'' ~ 16''( 15mm ~ 400mm)
Pressure class	Class 150 ~ Class 900
Length of face to face	ASME B16.10
Flange end	ASME B16.5
Test & inspection	API598, API6D
Operation model	Handle wheel, worm gear, pneumatic and electric actuated

8 10 12 14 16 inch eccentric type plug valveMain parts material
Body : WCB WCC or other material
Bonnet :WCB WCC or other material
Stem : F6a or other material
Plug : F6a or other material
