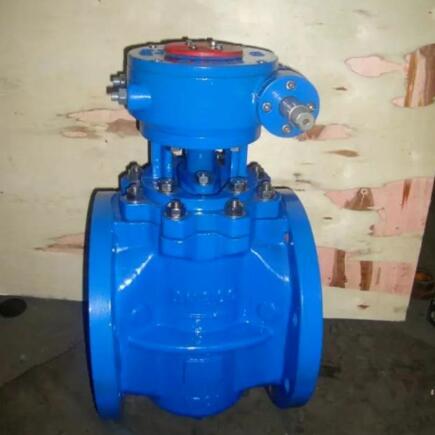

Resilient seated eccentric plug valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:ductile iron, cast steel, stainless steel
  • Description:
Resilient seated eccentric plug valve Description
Resilient seated eccentric plug valve can be designed according to ANSI standard, Resilient seated eccentric plug valve was widely applied for petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc,the main application of Resilient seated eccentric plug valve is cutting and connectting the pipeline medium with pressure class 150 to class 900 under the temperature -29℃ to +180℃(soft seat design);-29℃ to +450(metal seat design).

Resilient seated eccentric plug valve Characteristics
1. Compact structure, reliable sealing, perfect function and attractive shape .
2. Resilient seated eccentric plug valve easy to be opened or closed.
3. For the spare parts material and flange size,Resilient seated eccentric plug valve can be customized according to different actual working condition to meet project requirements.

Resilient seated eccentric plug valve Technical Specification

Design & manufacturer API599, API6D
Nominal diameter 1/2'' ~ 16''( 15mm ~ 400mm)
Pressure class Class 150 ~ Class 900
Length of face to face ASME B16.10
Flange end ASME B16.5
Test & inspection API598, API6D
Operation model Handle wheel, worm gear, pneumatic and electric actuated
