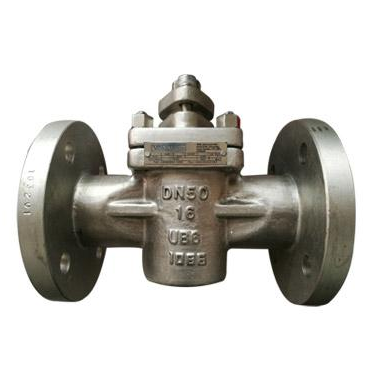

Cast steel sleeved plug valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Description:China sleeved plug valve factory,manufacturer and supplier for cast steel sleeved plug valve with different material for different medium and working condition.
Cast steel sleeved plug valve introduction:
Cast steel sleeved plug valve is the use of a plug with a through hole as the opening and closing parts,Cast steel sleeved plug valve body rotation with the stem to achieve the opening and closing action of the plug valve. Cast steel sleeved plug valve body is mostly cone, also has the cylinder body. Teflon sleeve type plug valve is simple structure, quick opening and closing, small flow resistance, convenient maintenance, good sealing performance, etc.Cast steel sleeved plug valve is sealed through the sealing surface around the sleeve.Unique 360° metal lip protection fixed sleeve, Cast steel sleeved plug valve has no cavity for medium accumulation, metal lip provides self-cleaning function when the sleeve plug valve turns,Teflon sleeve type plug valve is suitable for sticky and easy to scale working condition, two-way flow, more convenient to use and install.Cast steel sleeved plug valve is suitable for cutting off or connecting pipeline medium under nominal pressure CLASS150~CLASS600 and working temperature -29℃ ~ 180℃ in petroleum, chemical industry, pharmaceutical industry, chemical fertilizer industry, electric power industry and other working conditions.

Cast steel sleeved plug valve specification
Nominal pressure range: 150Lb-600lb or 1.00-6.4Mpa
Nominal size: 1/2"--16" (DN15--DN400)
Applicable temperature: -29~ 180℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Form: two or three way
Seal structure: soft seal
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Cast steel sleeved plug valve feature:
1. Cast steel sleeved plug valve with soft seal of clamp sleeve has reasonable structure, reliable seal, excellent performance and beautiful appearance.
2. Cast steel sleeved plug valve sealing is through the cover around the card to achieve.Unique 360° metal lip protection fixed clamp sleeve.
3.Cast steel sleeved plug valve no cavity to the media accumulation.
4. The metal lip provides self-cleaning function when the plug is rotating, suitable for sticky and easy scaling working conditions.
5. Cast steel sleeved plug valve two-way flow, more convenient to use and install.
6. The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

Cast steel sleeved plug valve manufacturing standard
Design and Manufacturing standards: API599, API6D
Structural length standard: ASMEB16.10
Connection flange standard: ASMEB16.5
Pressure and temperature class: ASMEB16.34
Test standard: API598.API6D

Cast steel sleeved plug valve working principle
Cast steel sleeved plug valve is with hole plug body as open-close part, through the rotation of the plug body and stem realize on-off movement.ball valve, a rapid switch pass valve, due to the movement between rotating seal face with wiping, and Cast steel sleeved plug valve can completely in the fully open to prevent contact with the liquid medium, so it usually can be used in medium with suspended particles.Another important feature is that it is easy to adapt to a multi-channel structure, so that a valve can have two, three, or even four different flow channels.This simplifies the design of the piping system and reduces the number of valves and connections required in the equipment.

Cast steel sleeved plug valve Standard Material specifications
NO. Part name Material
A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
1 Body A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
2 sleevd PTFE/RPTFE
3 Plug A182 F6a A351 CF8 A351 CF8M A351 CF3 A351 CF3M
4 Gasket Flexible graphite+stainless steel PTFE
5 Adjusting gasket A182 F6a A182 F304 A182 F316 A182 F304L A182 F316L
6 Cover A216 WCB A351 CF8 A351 CF8 A351 CF3 A351 CF3M
7 Adjusting bolt A193 B7 A193 B8 A193 B8M A193 B8M A193 B8M
8~9 Bolt/nut B7/2H B8/8 B8M/8M B8M/8M B8M/8M
10 Wrench AsTM A105/A216 WCB

Cast steel sleeved plug valve Dimensions(mm)

Class 150Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF mm 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 8.5 9.5 10.5 12 14 18 22 26 40 60 70 130 219 381 570
Class 300Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF,BW mm 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 9.5 10.5 12 14 16 20 24 29 53 75 85 185 230 390 550
Class 600Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF,BW mm 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710
Class 900Lb
size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF mm 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H mm 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W mm 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight Kg 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860
