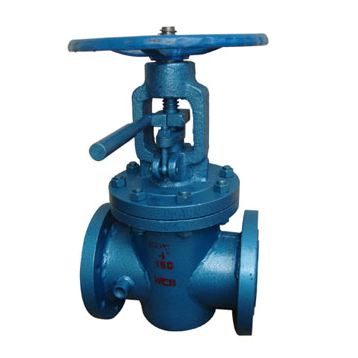

Steam jacket lift plug valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB WC6 WC9 CF8 CF3 CF8M CF3M
  • Description:
Steam jacket lift plug valve assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. Steam jacket lift plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. Steam jacket lift plug valve adopts raising first after the opening and closing of the valve operating mode, which greatly reduce the High temperature metal seat lift plug valve opening and closing torque. Steam jacket lift plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Steam jacket lift plug valve is widely used in Food Process,fertilizer Industries and High Viscous Process Media and other anti-crystallization and heating insulation industry system.

Steam jacket lift plug valve Product features:
1 Before Steam jacket lift plug valve openand close, it lift the plug first, make the plug and valve seat seal face off, and then 90° turn the plug, make the lift plug valve open or close.Because theSteam jacket lift plug valve in the process of opening and closing the plug and valve seat phase off, so the opening and closing of the Steam jacket lift plug valve is very easy, and the sealing surface in the opening or closing process is not easy to scratch, the Steam jacket lift plug valve service life is long.

2 Steam jacket lift plug valve has compact structure, small volume, compared with gate valve, the height of the lift plug valve size is greatly reduced, compared with the globe valve, fluid resistance is greatly reduced.

3 Compared with the ordinary plug valve, the Steam jacket lift plug valve applicable pressure and temperature range is larger.

4 Steam jacket lift plug valve seat sealing surface on both sides can be sealed, the lift plug valve installation and use is not limited by the flow of media.

5 when the Steam jacket lift plug valve is closed, it can be through the handwheel and the stem of the valve seat sealing to increase pressure, which can make the plug valve has better sealing performance.

6 The sealing surface of Steam jacket lift plug valve seat is raised to facilitate the cleaning of the sealing surface, and the sealing surface is not easy to store crystalline medium or solid particles.

Steam jacket lift plug valve Technical Specification:
Design & manufacturer API599, API6D
Nominal diameter 1/2'' ~ 16''( 15mm ~ 400mm)
Pressure class Class 150 ~ Class 900
Length of face to face ASME B16.10
Flange end ASME B16.5
Test & inspection API598, API6D
Operation model Handle wheel, worm gear, pneumatic and electric actuated
