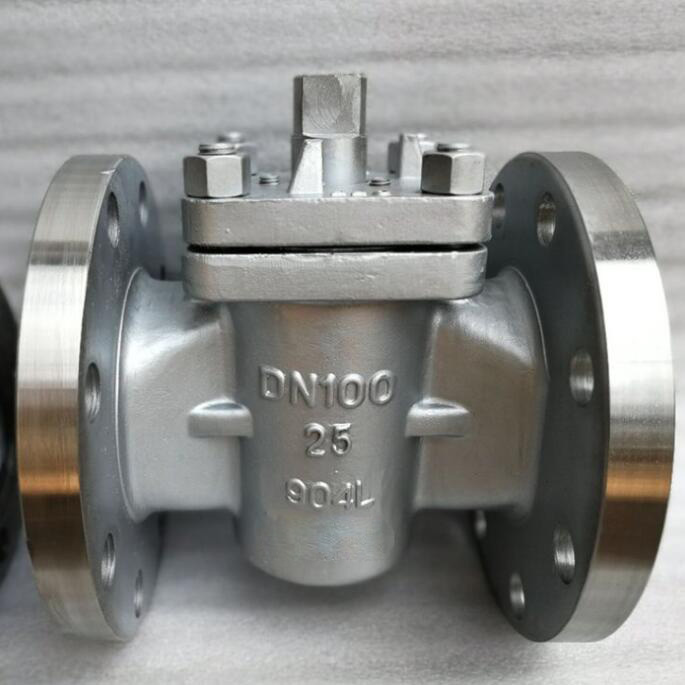

Super Austenitic 904L Plug Valve

Model:

  • Port size:1/2"~24" (DN15~DN600)
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Corrosive medium
  • Temperature :-29~180℃
  • Body material:Super Austenitic 904L
  • Description:Super Austenitic 904L Plug Valve Manufacturer and Supplier, Factory price for sale in China.
Super Austenitic 904L Plug Valve Manufacturer and Supplier, Factory price for sale in China. Super Austenitic 904L Plug Valve material code also can be UNS N08904, DIN 1.4539. Super Austenitic 904L Plug Valve is a high alloy austenitic stainless steel plug valve with low carbon content and excellent corrosion resistance in dilute sulfuric acid. It is designed for harsh corrosion conditions. Super Austenitic 904L Plug Valve has high chromium content and sufficient nickel content. The addition of copper makes it have strong acid resistance, especially high resistance to chloride gap corrosion and stress corrosion cracking, and is not easy to appear corrosion spots and cracks. The pitting resistance is slightly better than other steel, with good machinability and weldability, and can be used in pressure vessels.

Super Austenitic 904L Plug Valve Specification:
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K

Size range: NPS1/2” ~24”, DN15~DN600

Bore: Full bore, Reduced bore

Standard connections: flange, threaded, butt weld, socket weld

Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA


Super Austenitic 904L Plug Valve Application:

1. Oil, petrochemical equipment, such as reactors in petrochemical equipment, etc.

2. Sulfuric acid storage and transportation equipment, such as heat exchangers.

3. Power plant flue gas desulfurization device, the main use parts are: absorption tower body, flue, door plate, internal parts, spray system, etc.

4. Scrubbers and fans in organic acid treatment systems.

5. Seawater treatment equipment, seawater heat exchanger, paper industry equipment, sulfuric acid, nitric acid equipment, acid making, pharmaceutical industry and other chemical equipment, pressure vessels, food equipment.

6. Pharmaceutical factory: centrifuge, reactor, etc.

7. Plant foods: soy sauce jars, cooking wine, salt jars, equipment and dressings.
